Motor Pumps DC Motor Pump
Hydraulic products can provide a silent operating condition while displaying high-powered functions. Constructed with high-precision and high-powered internal gear pumps and motors, Choar-Ger’s compact serial pump products feature high output power, low-noise, less vibration and long service life. Additionally, the built-in temperature protection device provides high operating safety for the operator. Choar-Ger’s serial pump products will satisfy all applications of compact hydraulic units with high product credibility and meet customers’ cost-effective needs.
Voltages applicable to this product are DC24V, Max Operating Pressure 70kg/cm²
For more details about the appearance and sizes of hydraulic pumps, please refer to the attached chart.

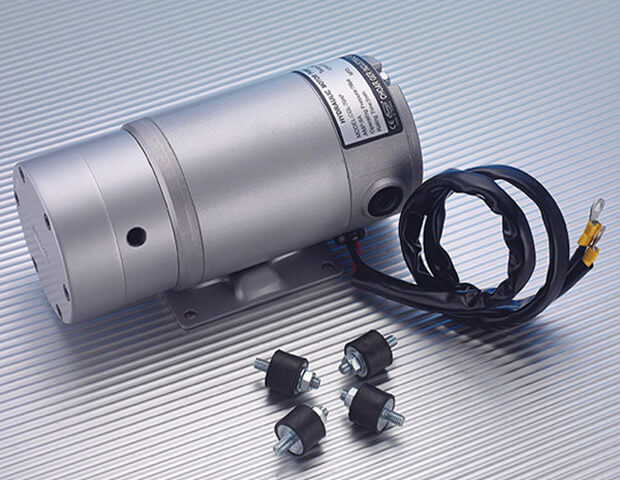

CGL-70AP

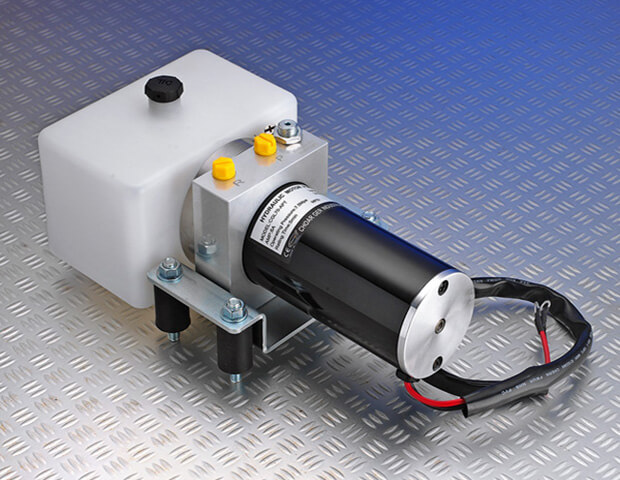

CGL-70APTDC Motor Pump Specifications
| Model | CGL-70AP | CGL-70APT | ||
|---|---|---|---|---|
| Voltage | DC24V | DC24V | ||
| AMP | 8A | 7A | ||
| Max Operating Pressure | 70 kgf/cm² (7MPa) | 70 kgf/cm² (7MPa) | ||
| Discharge L/min | 0.7 L/min | 0.5 L/min | ||
| Damarg Voltage V/mA | 2mA, 1 min 1.5kV | |||
| Leak Current | 500V, 1 min ≥ 60 MΩ | |||
| Temp. Protect | 90°C | |||
| Rating time | 5 min | |||
| Threaded connection | PT 1/8" | PT 1/8" ; M8 × 1 | ||
| Weight | 5.5 kg | 2.8 kg | ||
| Tank Capacity | - | 0.7 L | 1.0 L | 1.3 L |
