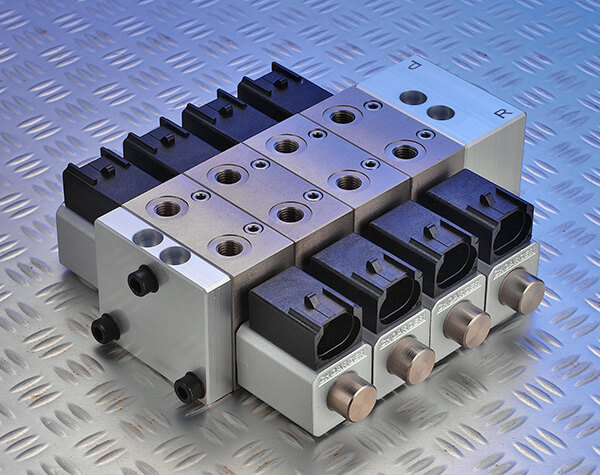

Solenoid Valves HP-2 Series (High Pressure)
HP Series Multi-functional compact solenoid valve.
Features
- Convenient adjustment.
- Compact, leak-free power units with high power density.
- Lasting and reliable retention.
HP Series Specifications
| Model | HP-2-2 | HP-2-3 | HP-2-4 | HP-2-5 | HP-2-6 | HP-2-7 |
|---|---|---|---|---|---|---|
| Voltage | DC24V | |||||
| Material | Cast Iron | |||||
| Max Operating Pressure | 120 kgf/cm² (12MPa) | |||||
| Rating time | 10 min | |||||
| Threaded connection | M8 × 1.0P | |||||
| Weight | 1.7 kg | 2.4 kg | 3.1 kg | 3.8 kg | 4.5 kg | 5.2 kg |
