Motor Pumps DC Motor Pump (High Pressure)
Hydraulic products can provide a silent operating condition while displaying high-powered functions. Constructed with high-precision and high-powered internal gear pumps and motors, Choar-Ger’s compact serial pump products feature high output power, low-noise, less vibration and long service life. Additionally, the built-in temperature protection device provides high operating safety for the operator. Choar-Ger’s serial pump products will satisfy all applications of compact hydraulic units with high product credibility and meet customers’ cost-effective needs.
Voltages applicable to this product are DC24V, Max Operating Pressure 120kg/cm²
For more details about the appearance and sizes of hydraulic pumps, please refer to the attached chart.

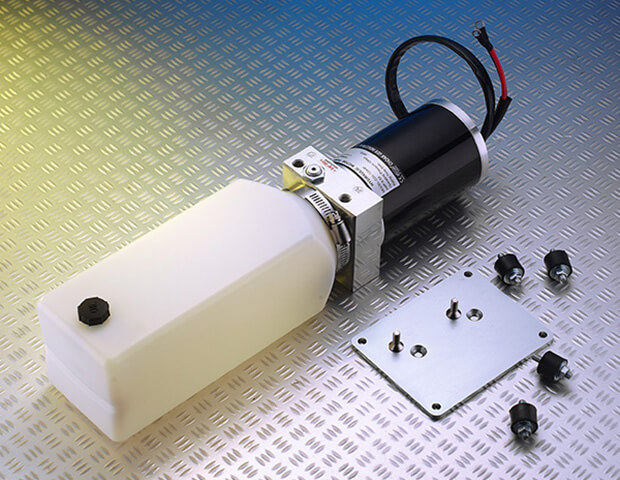

CGL-120HP Tank Capacity (1.3L)

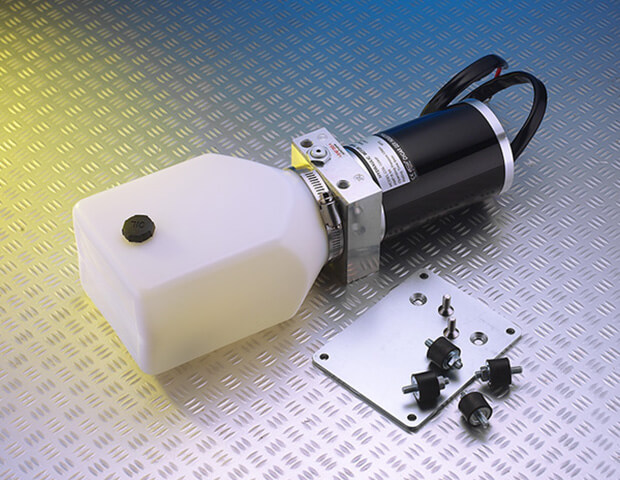

CGL-120HP Tank Capacity (1.0L)High Pressure DC Motor Pump Specifications
| Model | CGL-120HP | CGL-120HP | CGL-120HP | CGL-120HP | CGL-120HP | CGL-120HP |
|---|---|---|---|---|---|---|
| Displacement | High Displacement | Low Displacement | ||||
| Voltage | DC24V | |||||
| AMP | 9.5A | 7.5A | ||||
| Max Operating Pressure | 120 kgf/cm² (12MPa) | |||||
| Discharge | 0.7 L/min | 0.7 L/min | 0.7 L/min | 0.5 L/min | 0.5 L/min | 0.5 L/min |
| Damarg Voltage | 2mA 1 min 1.5kV | |||||
| Leak Current | 500V, 1 min ≥ 60 MΩ | |||||
| Temp. Protect | 90°C | |||||
| Rating time | 5 min | |||||
| Threaded connection | PT 1/8" ; M8 × 1 | |||||
| Weight | 4.1 kg | |||||
| Tank Capacity | 0.7 L | 1.0 L | 1.3 L | 0.7 L | 1.0 L | 1.3 L |
