Solenoid Valves P Series
Multi-Functional Compact Solenoid Valve
These Solenoid Valves are best suited for a single-acting cylinder with leak "0" body construction.
A check valve, a throttle valve and a relief valve are incorporated in the manifold body, and it easily constitutes the lift valve circuit.
P Series - Relieve valve

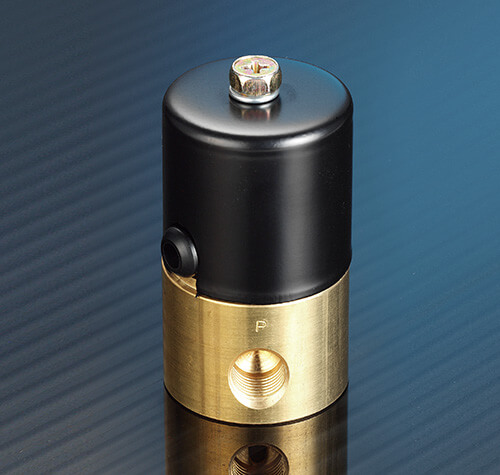

P-1

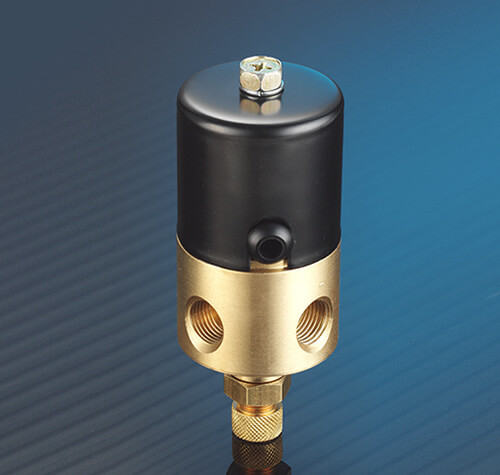

P-2

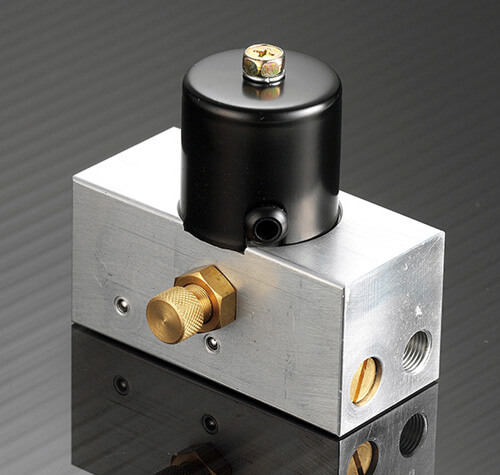

P-3

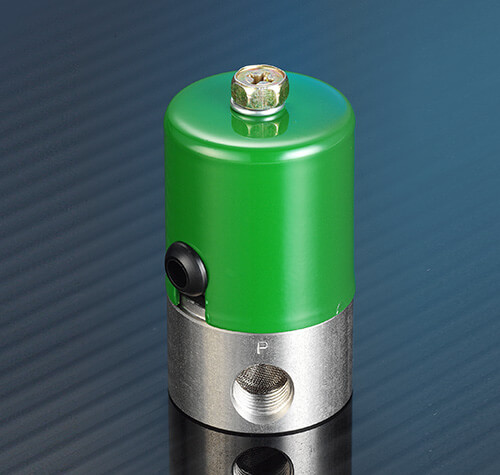

W-1( For Water or Air )| Model | P-1 | P-2 | P-2A | P-3 | W-1 |
|---|---|---|---|---|---|
| Material | Brass | Brass | Brass | Aluminum | Stainless Steel |
| Max Operating Pressure | 70 kgf/cm² (7MPa) | 70 kgf/cm² (7MPa) | 70 kgf/cm² (7MPa) | 70 kgf/cm² (7MPa) | 15 kgf/cm² (1.5MPa) |
| Threaded connection | PT 1/8" | PT 1/8" | PT 1/8" | PT 1/8" | PT 1/8" |
| Voltage | AC24V / AC115V / AC230V / DC12V / DC24V | ||||
| Rating time | 10 min | 10 min | 10 min | 10 min | 10 min |
| Weight | 0.21 kg | 0.25 kg | 0.25 kg | 0.30 kg | 0.15 kg |
