Solenoid Valves PR Series
Multi-functional compact magnetic valve
We have solenoid valves with simple function of shut-off, solenoid valves for lifting circuits and also, all in one type solenoid valves to control not only direction but also pressure and flow with integration of many control valves within one manifold.
Miniatured Solenoid Valve Units are composed of many various type valves, Their compact, multi-functional, shockless structure allows the hydraulic system to be smaller and of higher performance.
This series suited for two or more single-acting cylinders and/or double-acting cylinders.
Voltages applicable to this series products are AC24V, 30V, 100V, 115V, 220V and 240V / DC24V, DC12V.
UL recognition has been admitted on AC-115V, DC-24V, which proves both of their high quality and safety.
For more details about the appearance and sizes of magnetic valves, please refer to the attached chart.
PR-1Features
- Solenoid valve suited for two or more single-acting cylinder and double-acting cylinder
- Miniature solenoid valve units are consisted of many various type valve.
- Compact, multi-functional, shock-less structure allows the hydraulic system to be smaller and of higher performance
- PR series is simplified for most hydraulic circuits. All valves necessary to control pressure, flowand direction of cylinder movement are installed in the units.
- PR series is shock less, utilizing its unique design.
- All valve being contained in a single manifold, thereis no need for fitting and hoses, and the installation space can be small.
PR Series Multi-functional compact magnetic valve

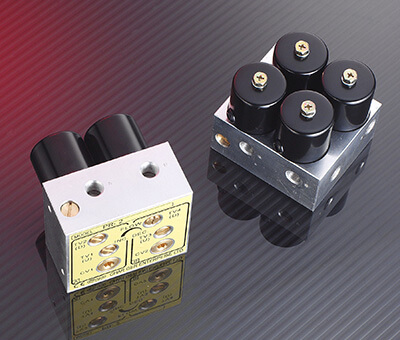

PR-2

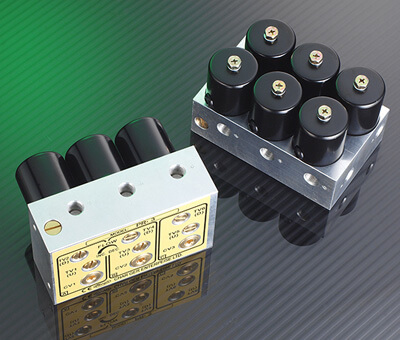

PR-3

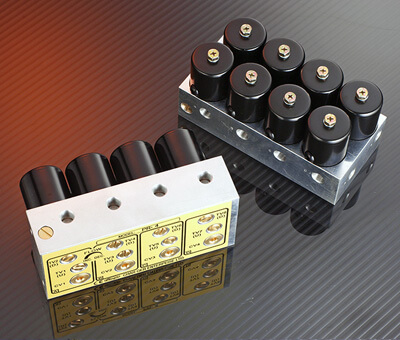

PR-4

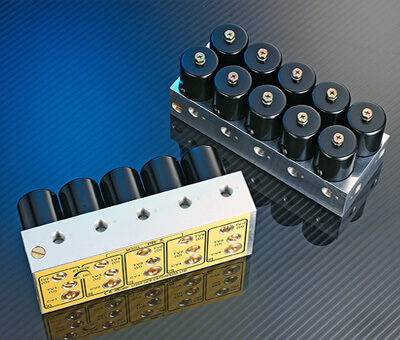

PR-5

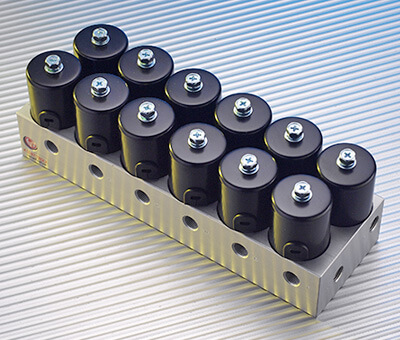

PR-6| Model | PR-1H | PR-1 | PR-2 | PR-3 | PR-4 | PR-5 | PR-6 |
|---|---|---|---|---|---|---|---|
| Material | Brass | Aluminum | Aluminum | ||||
| Max Operating Pressure | 120 kgf/cm² (12MPa) | 70 kgf/cm² (7MPa) | |||||
| Threaded connection | PT" 1/8 ; M8 × 1 | PT" 1/8 ; NPT" 1/8 | |||||
| Voltage | AC24V / AC115V / AC230V / DC12V / DC24V | ||||||
| Rating time | 10 min | ||||||
| Weight | 0.76 kg | 0.45 kg | 0.95 kg | 1.30 kg | 1.80 kg | 2.30 kg | 2.80 kg |
| Catalogue Download | Download | Download | Download | Download | Download | Download | Download |

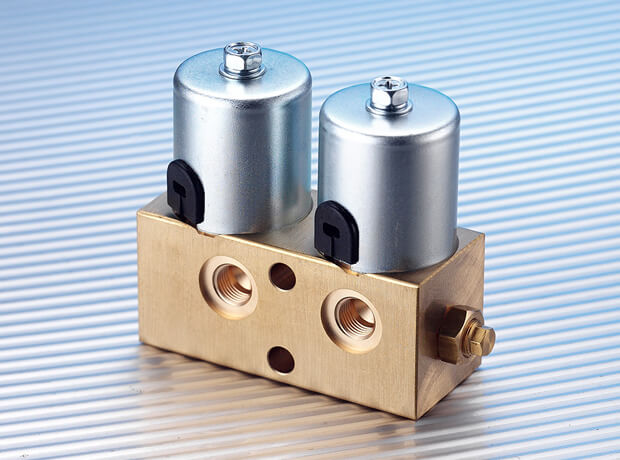

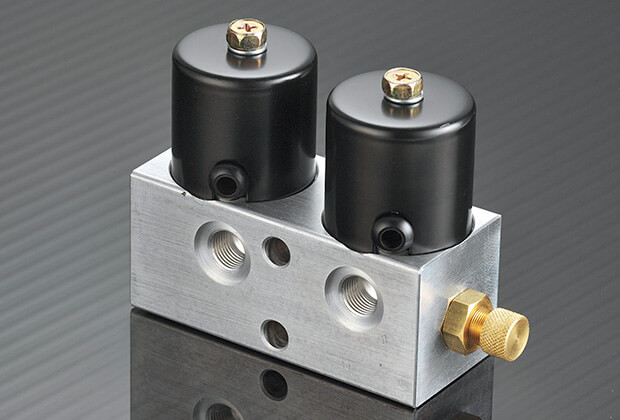

PR-1H

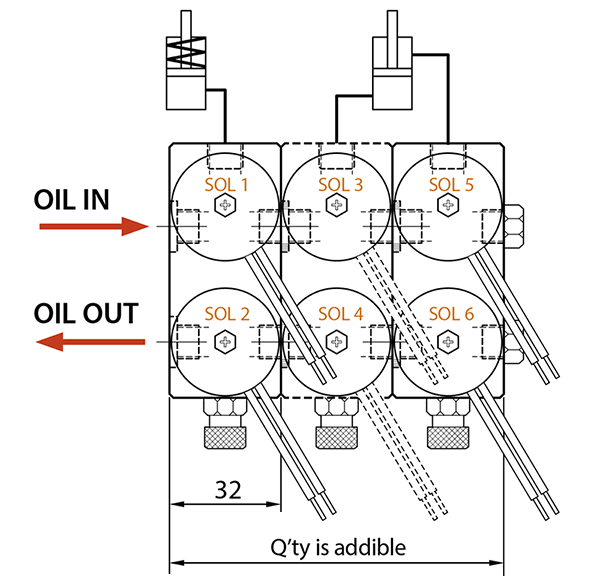

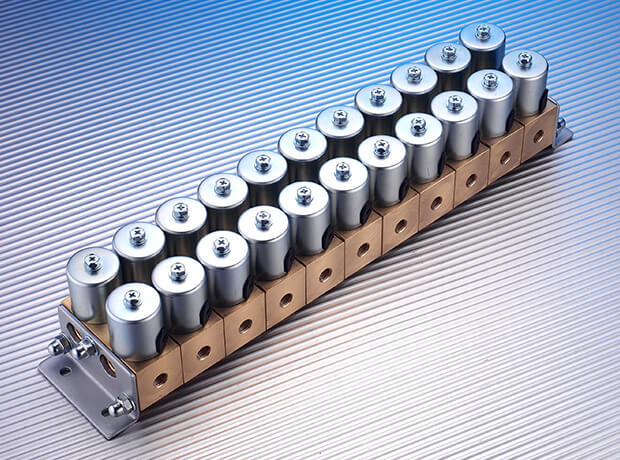

PR-1H series connectionPR-1 INTERCONNECTION DIAGRAM
| Article | Motion | Pump | SOL1 | SOL2 | SOL3 | SOL4 | SOL5 | SOL6 |
|---|---|---|---|---|---|---|---|---|
| Single-acting | Up | ON | ON | OFF | ||||
| Down | OFF | OFF | ON | |||||
| Double-acting | Up | ON | ON | OFF | OFF | ON | ||
| Down | ON | OFF | ON | ON | OFF |
